Efficient Production Mango Cake Production Line

Efficient Production Mango Cake Production Line

Brand Name:	Hanyuan
Model Number:	HY-MCL300
MOQ:	1 piece
Price:	100000-150000USD/SET
Payment Terms:	L/C T/T D/P
Supply Ability:	30set/month

Detail Information

Product Description

Detail Information

Keyword:

Mango Cake Production Line

Voltage:

380V/50Hz

Power:

100kW

Machine Weight:

4000kg

Capacity:

300-500kg/H

Layout Size:

30×6 Meters

Supply Ability:

30set/month

Highlight:

Efficient Production Mango Cake Line

Efficient Mango Cake Production Line

Automatic Mango Cake Processing Line

Product Description

Mango Cake Production Line

Mango cake is a dessert that combines the sweet flavor of mango with rich milk aroma. It features a soft, glutinous, and delicate texture, making it ideal for afternoon tea or as a snack. The production process includes boiling sugar, stirring, cooling and shaping, cutting into pieces, and packaging.

Application

HANYUAN Mango Cake Production Line is designed for slice cutting of mango cake, donkey-hide gelatin pastry, dates & walnut pastry, mixing of dry & adhesive materials, forming, cooling, cutting, and pillow packaging. This production line utilizes Gas or Steam Planet-stirring-pot for gentle pastry concentration and features an Air-conditioner cooling tunnel for active cooling of bar slabs, making it suitable for frozen forming of viscous and sticky materials.

Machinery Introduction

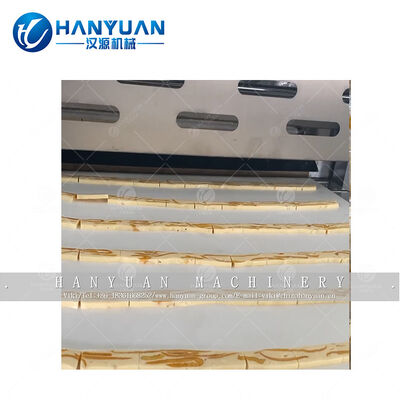

Sample Product

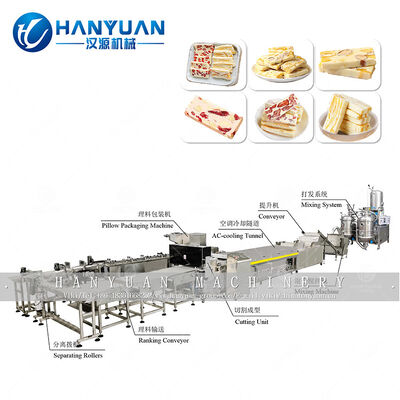

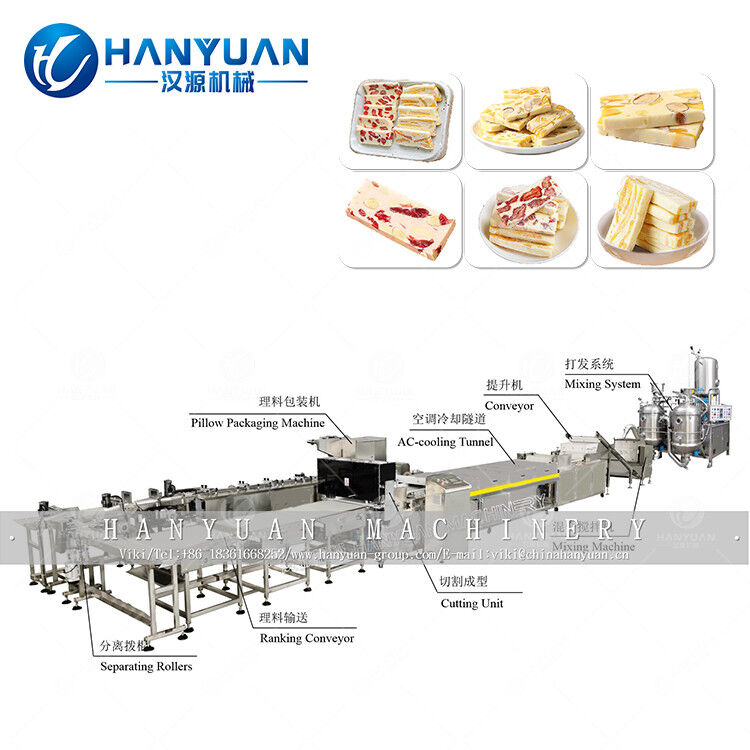

Included Machines


Sugar Cooking	Mixing Machine	Conveyor

Cutting Machine	Packaging Machine

Key Characteristics

Equipped with active cooling function for efficient temperature control
Features large multi-roll leveling machine for uniform thickness and flattening
Complete process integration: feeding, cooling, spreading, leveling, cooling and cutting for continuous packaging
Adjustable size to accommodate different product specifications and production needs
Advanced PLC + touch screen + frequency conversion control system with automatic cutting for time-saving operation
Automatic pillow packaging machine with complete material management, adjustable bag size and speed, and excellent forming results

Technical Parameters

Item	Value
Voltage	380V/50Hz
Power	100kW
Capacity	300~500kg/h
Area	30×6m
Manpower	4~6 people
