Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine

Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine

  • Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine
  • Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine
  • Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine
  • Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: Hanyuan
Certification: CE
Model Number: HY-MCL300
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 50000-90000USD/SET
Delivery Time: 15-30 days
Payment Terms: L/C T/T D/P
Supply Ability: 30set/month
Contact Now
Detailed Product Description
Keywords: Fruit Dates Cake Production Line Voltage: 380V/50Hz
Power: 100kW Machine Weight: 4000kg
Function: Mixing, Forming, Cutting, Packaging Bar Size: 90×30×16mm
Capacity: 300-500kg/h Bar Shape: Square, Customized
Material: Stainless Steel Control System: PLC+Touch Screen
Layout Size: 30×6 Meters Warranty: 1 Year
Highlight:

Fruit Dates Cake Production Line

,

Dates Cake Production Line 100kW

,

500kg/H Date Bar Making Machine

Fruit Dates Cake Production Line
100kW 500kg/H Date Bar Making Machine
Application
Hanyuan Fruit Dates Cake Production Line refers to an automated or semi-automated manufacturing process designed to produce date-based energy bars or snack bars. These bars are typically made from dates (a natural sweetener and binder) combined with nuts, seeds, dried fruits, and other ingredients.

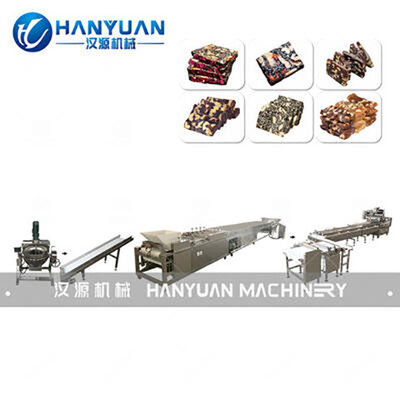

Machinery Introduction
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 0
Sample
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 1
Machine Components
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 2
Sugar Cooking Pot
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 3
Mixing Machine
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 4
Conveyer
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 5
Cutting Machine
Fruit Dates Cake Production Line 100kW 500kg/H Date Bar Making Machine 6
Packaging Machine
Key Characteristics
  • This production line applies the Gas or Steam Planet-stirring-pot to concentrate the pastry gently.
  • This production line adopts Air-conditioner cooling tunnel to actively cool the bar slab, which is suitable for the frozen forming of viscous and sticky materials.
  • This production line adopts strip-cutting-knives, and servo-verticle-guillotine knife to cut the slab into slice.
  • This production line adopts fully automatic pillow packaging with transverse&longitudinal saparating roller to achieve the fast sorting and arrangement of bars, high-speed packaging.
Technical Parameters
Item Value
Voltage 380V/50Hz
Power 100kW
Capacity 300~500kg/h
Area 30×6m
Manpower 4~6 people
Frequently Asked Questions
How To Install The Machine?
We can help you by videos, emails and pictures. If large project, we will arrange the engineer help you to install it in your country.
What is your guarantee of a range of equipment of Small scale peanut candy bar making process line?
Usually our guarantee is 1 year for small scale peanut candy bar making process line.
How Should I Do If Meet Some Trouble While Using Small Scale Peanut Candy Bar Making Process Line?
Don't worry. It is our pleasure to provide after-sales service to you. We can take video for showing how to solve the problem of small scale peanut candy bar machines, and write detail resolution to you. Also, if necessary, we may arrange the testing engineer to your factory.
After-sale Service
  • Support for sample running machine service - There are a variety of Small scale peanut candy bar machine models in our factory. Provide customers with sample services and check the perfection of production line.
  • Five-star after-sales feedback service - Technical engineers will operate the machine within 72 hours without interruption according to the customer's requirements.
  • Provide videos training services - Our technical team has carefully filmed more than 100 installation and commissioning videos of various accessories and complete machines, providing videos training guarantee services for the equipment permanently.
  • Keep close contact with customers - In order to improve our products, we keep in close contact with customers to know their feedback and suggestions of the small scale peanut candy bar making process line.
  • 1 year warranty service and lifelong maintenance - From the date of the buyers receive the machines, 1 year warranty service, and take the lead in proposing the concept of lifelong maintenance in the industry (after the warranty period, the cost of accessories and the cost of labor are charged according to its real cost).
