This advanced 300kg/h capacity Chocolate Cereal Bar Production Line enables fully automated manufacturing through integrated processes including mixing, forming, baking/cooling, cutting, and packaging. Designed for industrial-scale production of various chocolate-coated cereal bars including protein bars, energy bars, grain bars, and nut bars.
Production Applications
The production line handles complete processing from adhesive material melting & weighing, dry material weighing, automatic mixing, forming & cooling, cutting, chocolate coating (full or bottom), decorating, and pillow inner packaging. Suitable for producing grain energy bars (oats, quinoa, chia seeds), protein/fitness bars (whey protein, plant protein), chocolate-coated bars (nut fillings, fruit particles), and children's nutrition bars (low sugar, high calcium, vitamin fortified).

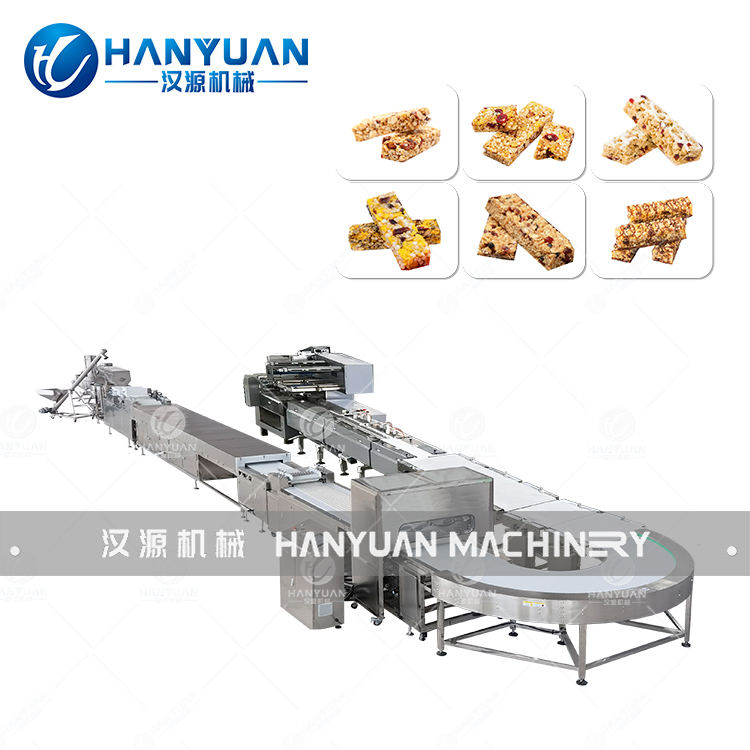

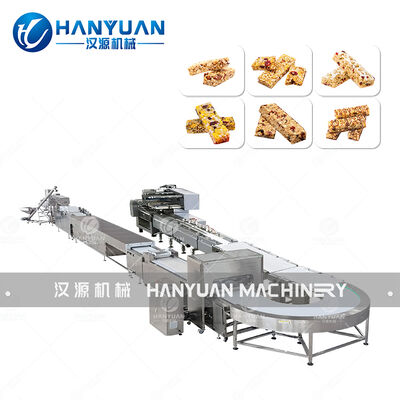

Production Line Overview
Component Equipment
Protein Cereal Bar Mixer
Protein Cereal Bar Cooker
Ultrasonic Cutting Machine
Enrobing Machine
Pillow Packing Machine
Box Packing Machine
Key Features
Cereal Bar Sugar Boiling Pot with heated area provides high thermal efficiency, uniform heating, short boiling time, and precise temperature control
Protein bar mixing machine features thermostat control with positive and negative mixing capabilities
Integrated processing line with individual machine operation saves energy and reduces labor requirements
Adjustable size configuration to accommodate different product specifications
Multi-roll system ensures smooth cereal bar surface with moderate density
Ultrasonic Cutting Machine with reforming flat structure provides smooth suppression, uniform thickness, and automated cutting control
PLC and touch screen interface with multiple language options (English, Spanish, French) and real-time fault display
Technical Specifications
Voltage
380V/50Hz
Power
50-100kW
Capacity
300kg/h
Area
30m×4m×2m
Manpower
5-6 people

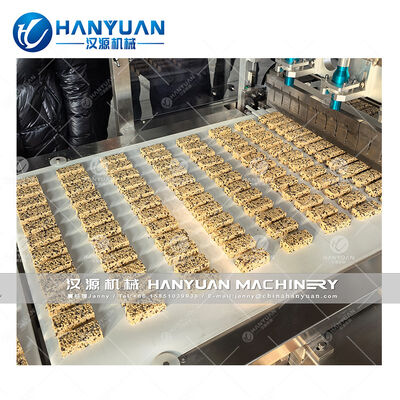

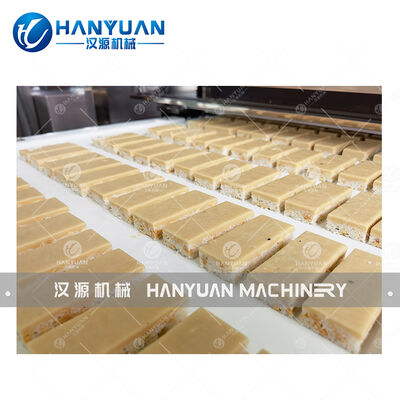

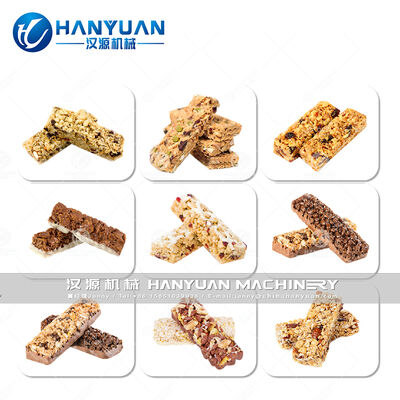

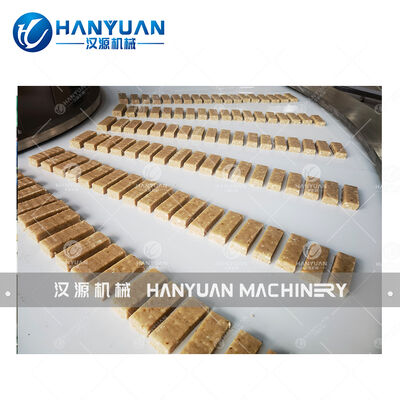

Production Samples
Contact Information
For detailed information and professional consultation about our Protein Cereal Bar Production Line:
