300kg/H Chocolate Bar Production Machines 380V Energy Bar Production Line
Application Overview
This automated Energy Bar Production Line handles complete processing from mixing and forming to baking (or cold working), cutting, and packaging. Designed for industrial-scale production of various chocolate-coated bars including cereal bars, protein bars, energy bars, granola bars, and oat bars with chocolate.
Production Capabilities
The system manages the entire production workflow including adhesive material melting & weighing, dry material weighing, automatic mixing of dry & adhesive materials, forming, cooling, cutting, chocolate coating (full or bottom), decorating, and pillow inner packaging.
Complete Line Configuration
This Protein Bar Production Line features automatic proportioning and mixing capabilities. The integrated system includes sugar boiling pot, stirring mixing machine, servo cutting system, cooling tunnel, chocolate coating equipment, pillow packaging machine, and box/carton packing equipment.
Product Variety
Capable of producing grain energy bars (oats, quinoa, chia seeds), protein/fitness bars (whey protein, plant protein), chocolate-coated bars (nut fillings, fruit particles), and children's nutrition bars (low sugar, high calcium, vitamin fortified).

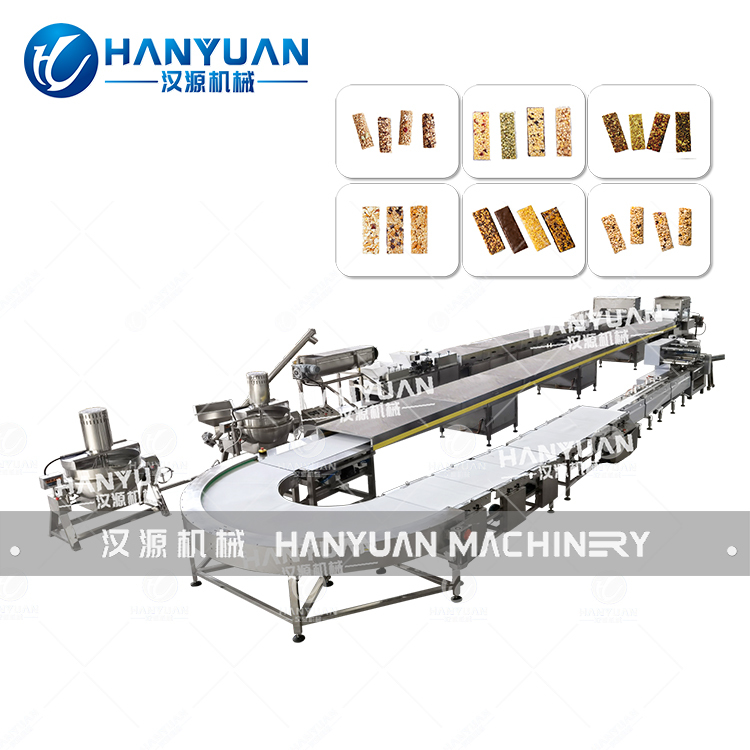

Production Line Overview
Equipment Components
Protein Cereal Bar Mixer
Protein Cereal Bar Cooker
Ultrasonic Cutting Machine
Enrobing Machine
Pillow Packing Machine
Box Packing Machine
Key Features
Cereal Bar Sugar Boiling Pot features heated area design with high thermal efficiency, uniform heating, short boiling time, and precise temperature control
Protein bar mixing machine includes thermostat for easy temperature control with positive and negative mixing capabilities
Complete energy bar production line integrates multiple food machinery units that can operate independently, saving energy and labor
Adjustable production line size accommodates different product specifications and production needs
Multi-roll system ensures smooth cereal bar surfaces with moderate density
Protein Bar Ultrasonic Cutting Machine features reforming flat structure for smooth suppression and uniform thickness with automatic speed control and feeding
PLC and touch screen interface with multiple language options (English, Spanish, French) and real-time fault display
Technical Specifications
Voltage
380V/50Hz
Power
50-100kW
Capacity
300kg/h
Area
30m×4m×2m
Manpower
5-6 people

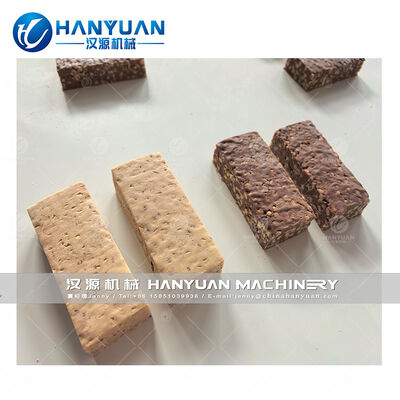

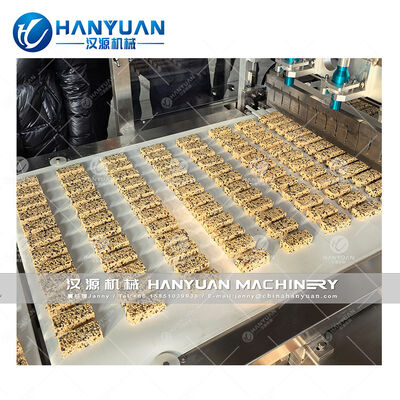

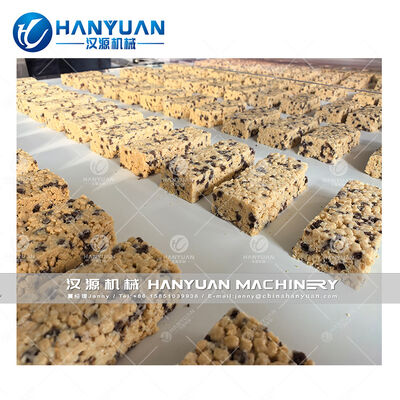

Production Samples
Contact Information
For detailed information and professional consultation about our Protein Cereal Bar Production Line:
